Electro-Fashion Sewable LEDs, White, pack of 10

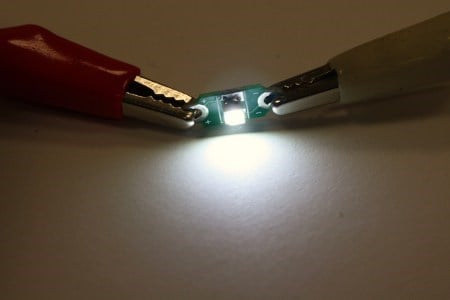

These ultra slim, pre-mounted Electro-Fashion LEDs from Kitronik run off a 3V coin cell battery and are illuminated continuously when powered. These LEDs are supplied as a pack of 10.

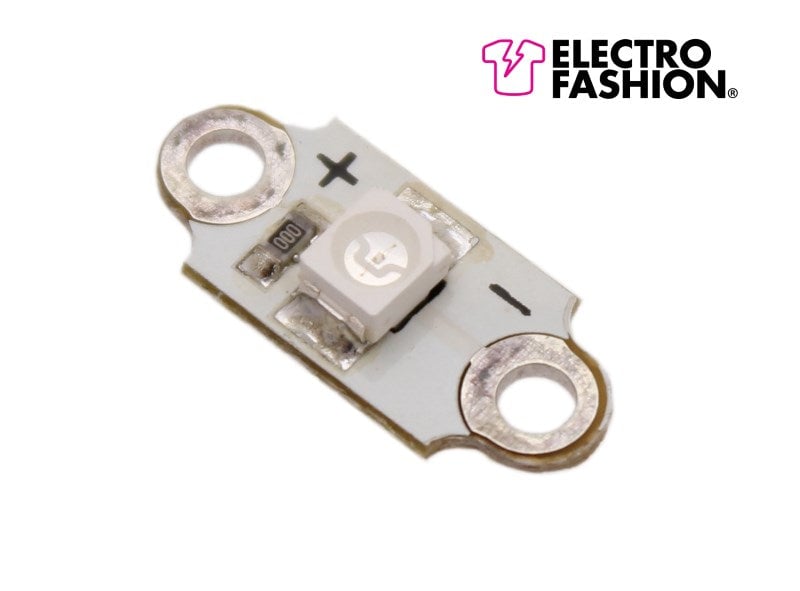

They have connections to which the conductive thread can be connected. These are clearly marked with ‘+’ and ‘-‘ to indicate which is the positive and which is the negative connection.

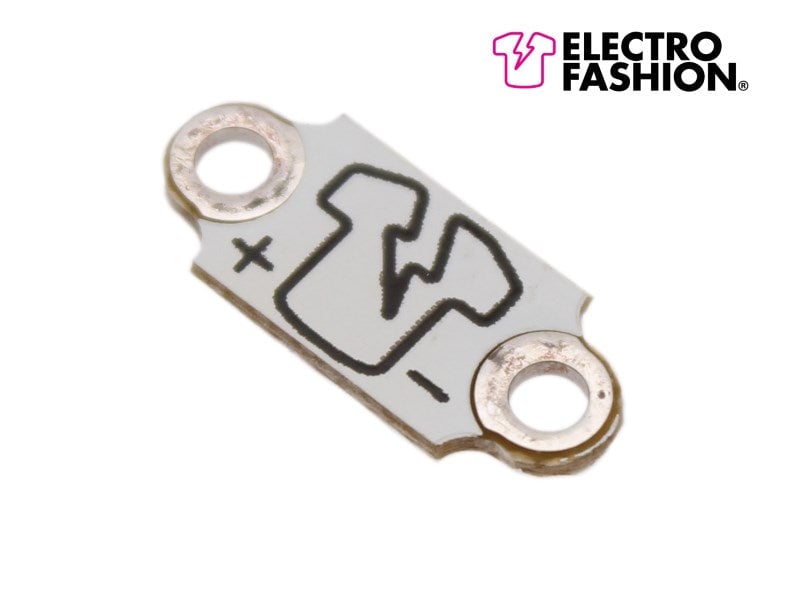

The PCBs are double sided making the conductive thread connection very reliable (see example picture below).

Features:

• Ultra Slim Sewable LEDs.
• Double Sided PCBs for reliable connections.
• Clearly marked ‘+’ and ‘-‘ connections.

Contents:

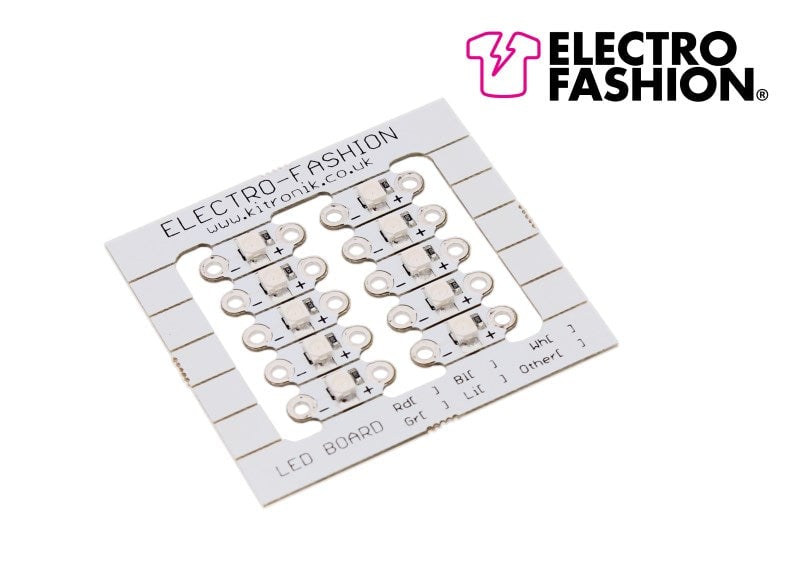

• 1 x Electro-Fashion LED Board White, 10 Pack.

Dimensions:

• Length: 15mm.
• Width: 6.5mm.
• Height: 2.7mm.

Resources:

• E-Textiles Tutorials & Resources.

Example Circuit:

For illustration only, not actual components provided.
