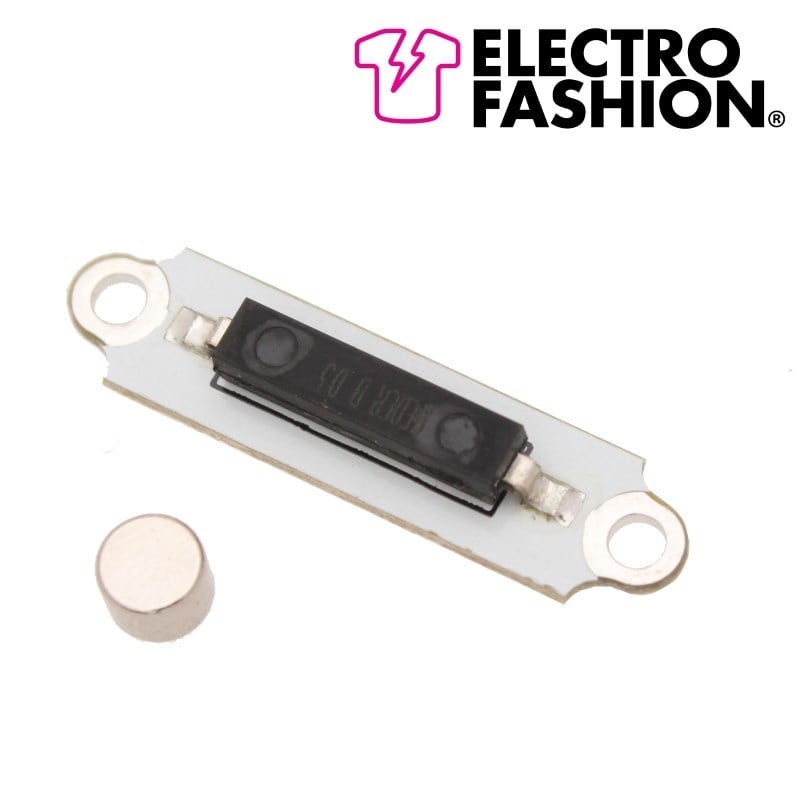

ElectroFashion, Magnetic Switch

Stock code: 2720
filler

Pricing:Ex VATInc VAT
1+ £3.00
(excl. VAT)
£3.60
(inc. VAT)
10+ £2.50 £3.00
Stock:
Discontinued - This page is for reference for existing customers of this product. It is not possible to buy this item.

Description

AttributeValue
Length 25mm.
Width 6mm.
Height 3mm.
Maximum Switch Rating Voltage DC 200V.
Maximum Switch Rating Current 1A.
Contact Rating 20W.
Notes No combination of V & A to exceed contact rating i.e. 200V x 0.1A = 20W.

Same Day Dispatch

  • Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.

UK Deliveries

  • If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
  • If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate: remote area list.
  • If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.

Rest of the world

  • These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
  • Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.

Collection

  • If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.

Further Information

Please note: Instructions for using this product (if available) can be found under the product description.
Getting Started with E-Textiles: Adding Switches to a Circuit

Some cell holders have switches on them but on those that don’t, the only way to switch off the cell holder is to remove the cell.  There are a range...

Getting Started with E-Textiles: Adding Switches to a Circuit

Some cell holders have switches on them but on those that don’t, the only way to switch off the cell holder is to remove the...

How to Make an LED Brooch with a Magnet Switch

DescriptionCreate an eye catching brooch that can be used on a variety of different outfits without the use of clips & pins that might damage the fabric. This brooch uses...

How to Make an LED Brooch with a Magnet Switch

DescriptionCreate an eye catching brooch that can be used on a variety of different outfits without the use of clips & pins that might damage...

How to Use the Magnetic Switch in an E-Textile Circuit

This cute little dog has a magnet hidden away inside his bone, and when the bone is placed in his mouth the LED in his nose lights up. The dog...

How to Use the Magnetic Switch in an E-Textile Circuit

This cute little dog has a magnet hidden away inside his bone, and when the bone is placed in his mouth the LED in his...

How to Make Valentine Magnetic Hearts

Description Get in the mood for Valentine's Day with these hearts that light up when they touch. Each heart has a magnet switch and magnet hidden along the side edges...

How to Make Valentine Magnetic Hearts

Description Get in the mood for Valentine's Day with these hearts that light up when they touch. Each heart has a magnet switch and magnet...

Q:
1. What is the proximity between Magnet and Magnetic Switch? 2. Does it come with 3M tape for mounting?
Asked by: Deepashri
A:
Hi there, Thank you for your question its roughly around 5mm distance between the two to get a response. These do not come with anything for mounting as they are designed to be sewn into a kit with Electro Fashion Conductive thread. Best Regards Cullen
Answered by: Cullen Lewis
14-Sep-18

Q:
Hi I need to switch the LEDS on when the magnet is in open position? Can you get it to work in this way?? Are there any other products that can turn a LED on when a magnet is open? Thanks ekurtharris@gmail.com
Asked by: ellie
A:

You are able to have a circuit working while a switch is open, it just requires a few additional components. An example of the circuit required can be seen here, http://images.elektroda.net/68_1165456178.gif

Answered by: Michael Lockhart
22-Dec-15

Q:
Hi

I need the switch to switch the LEDs ON when the magnet is removed? Can this component work in this way?
Asked by: Lesley
A:
Unfortunately this isn't easily doable. You could do it if you used something like a lilypad Arduino, you could write a program so the lights were on unless the switch was on.
Answered by: Aaron Sturman
19-May-14
