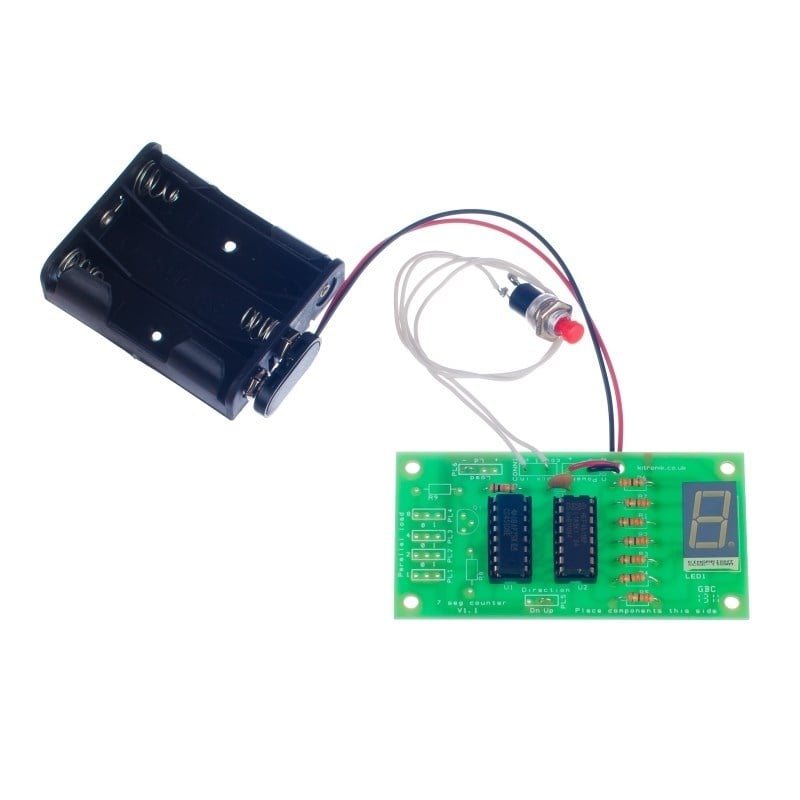

Kitronik 7 Segment LED Display Kit with batteries
+
+
Description
This kit uses a binary up down counter IC and a binary to 7 segment display driver IC to operate the 7 segment LED display. Connections to the board allow up or down counting to take place and pre-set value to be loaded.
The kit makes a nice table football score board as supplied or an electronic dice if used in conjunction with the square wave generator (Application note available).
Features:
- Connections to the board allow up or down counting to take place and pre-set value to be loaded.
- The kit uses both a Binary Up/Down Counter IC and a Binary to 7 Segment Display Driver IC.
- Press the switch to count the LED display up/down.

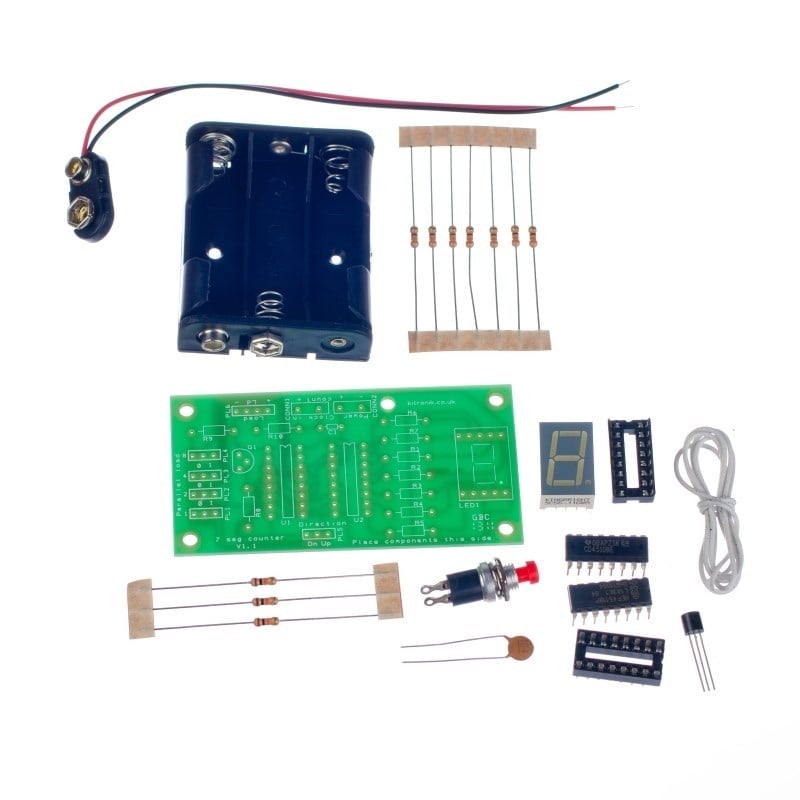

Contents:
- 1 x 4510B BCD Up / Down Counter IC.
- 1 x 4511B BCD To 7 Segment Driver IC.
- 2 x 16 Pin IC Holder.
- 7 x 330Ω Resistors.
- 3 x 10KΩ Resistors.
- 1 x BC337 NPN Transistor.
- 1 x 100nF Capacitor, Ceramic.
- 1 x 7 Seg Display Module Green.
- 1 x Push To Make Switch.
- 1 x PP3 Clip Lead.
- 1 x 3AA Battery Holder.
- 0.5m Connecting Wire
- 1 x 7 Segment Display PCB
Dimensions:
- PCB Length: 85mm.
- PCB Width: 44.5mm.
Requires:
Note:
- This kit requires soldering.
Free samples:
Teachers can order a sample of this kit (one per school) request a sample kit.
You will need to select the kit from a list of all the sample kits; the stock code for this kit is 2118.
Note: this service is only offered to schools for evaluation purposes only.
Buy British:
This product is designed and manufactured in the UK by Kitronik.
Same Day Dispatch
- Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.
UK Deliveries
- If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
- If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate: remote area list.
- If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.
Rest of the world
- These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
- Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.
Collection
- If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.
Further Information
- For information about all of the delivery options we offer see full delivery details.
How to solder - an introductory guide: If you're new to soldering our Soldering School will have you up and running in no time. What is soldering? Soldering is a...
How to solder - an introductory guide: If you're new to soldering our Soldering School will have you up and running in no time. What...
Q:
How long will it take to assemble?
A:
Hi Josh,
Thank you for your question, it depends on how experienced you are at soldering. There are around 60 solder joins on the board so about an hour or so if you were less experienced.
Best Regards
Cullen
Answered by: Cullen Lewis
24-Jul-19
Q:
how do I code this
Asked by: bob
A:
Hi Bob,
Thank you for your question you do not code it in the traditional manner as it already has the chips coded. The full instructions for this kit can be found below.
https://www.kitronik.co.uk/pdf/2118_7_segment_led_display_essentials_2_0.pdf
Best Regards
Cullen
Answered by: Cullen Lewis
12-Dec-18
Q:
Hi can this lit be used to drive a kingbright SA15-11SRWA 7-segment display?
Asked by: Liam Brady
A:
Hi Liam, Looking at the datasheet you may be able to use that 7 segment display but it isn't something we have tried. The display we have is a kingbright SC56-11GWA.
Answered by: Michael Lockhart
04-Jan-18
Q:
Good Morning, Can the 7 segment display be installed on a separate board connected to the main board via wire? Also, is there a recommended age/school grade for this type of project?
Asked by: Anthony
A:
That's fine just make sure you wired each pin to the correct location on the PCB. The kit is aimed at Key Stage 4 (14-16 year olds)
Answered by: Aaron Sturman
24-May-14
Q:
Is it possible to add an extra switch with this kit thats switches down,so you have both. Aslo is there one with a red display instead of green.
Asked by: Andrew
A:
The IC that does the counting has an input to count and an input for direction. If you wanted to have a button for up and a button for down rather than a slide switch for direction and a button to step then you would need some logic. The step input wants to be active if the up or down switch is pressed. In other words feed the up and the down switch (with pull down resistors) in to an OR gate. The up / down pin should be connected to the up button. This now leaves the minor issue of propagation delays and set-up times. At 5V the up / down signal needs to have been present for 300nS before the clock signal arrives. In hardware this means connecting a resistor followed by a capacitor to 0V and then using the point where the resistor and capacitor connect to feed in to the clock in. If you use a 1K and a 1nF it should give you the required delay.
Answered by: Geoff Hampson
23-Apr-12
Q:
Hello Great kit!!! My question is will this kit work for a seven segement display (home made) Each segment contains 12 led in parallel (each having it's own resistor) the led is about 20ma with forward voltage of 2.2V .......... if i buy your kit can i power my 7 segment display. by simply replacing you display.
Asked by: Jay
A:
The driver IC on this board is a 4511B (BCD to 7 segment driver) and is capable of driving 25mA on each of the 7 segments. If I read your description correctly you are looking to drive 240mA per segment. So would need to connect a transistor between the IC and the LEDs.
Answered by: Geoff Hampson
20-Jul-11
Q:
regarding the above Kit, is it possible that you have a circuit board that can accommodate two 7 segment displays? I am looking to build a board but only need the numbers to go up to 12, and then back to zero after that, if possible. Thanks
Asked by: M Norris
A:
The up down binary coded decimal IC (4510B) has a pin for carry out (pin 7) and a carry in pin (pin 5). This means that it is possible to use one chip to drive a second chip and it would therefore be possible to get one chip to count to 9 and on roll over trigger the second chip to go from 0 to 1. The only problem is that as this project kit has not been designed to use the carry in pin and as a result it has been set to a state where it is ignored. It is possible to use some logic gates to work out that the number 12 (BCD 10010) has been reached and that a master reset or parallel load of zero is required. So whilst it would be possible to do it, it won?t be very straight forward and would need trac
ks cutting plus extra logic gates and mounting of the 7 segment displays on wires in order for them to be together. You may wish to consider using a PICAXE chip or similar.
ks cutting plus extra logic gates and mounting of the 7 segment displays on wires in order for them to be together. You may wish to consider using a PICAXE chip or similar.
Answered by: Geoff Hampson
19-Jul-11
Q:
with this kit is it possible to add 2 more seperate counters with the push buttons? I am trying to put together a counter like this that I can count 3 sperate items with 3 seperate displays and push buttons.
Asked by: Brian Zubick
A:
In order to do this you would need to use 3 separate kits.
Answered by: Geoff Hampson
11-May-11
