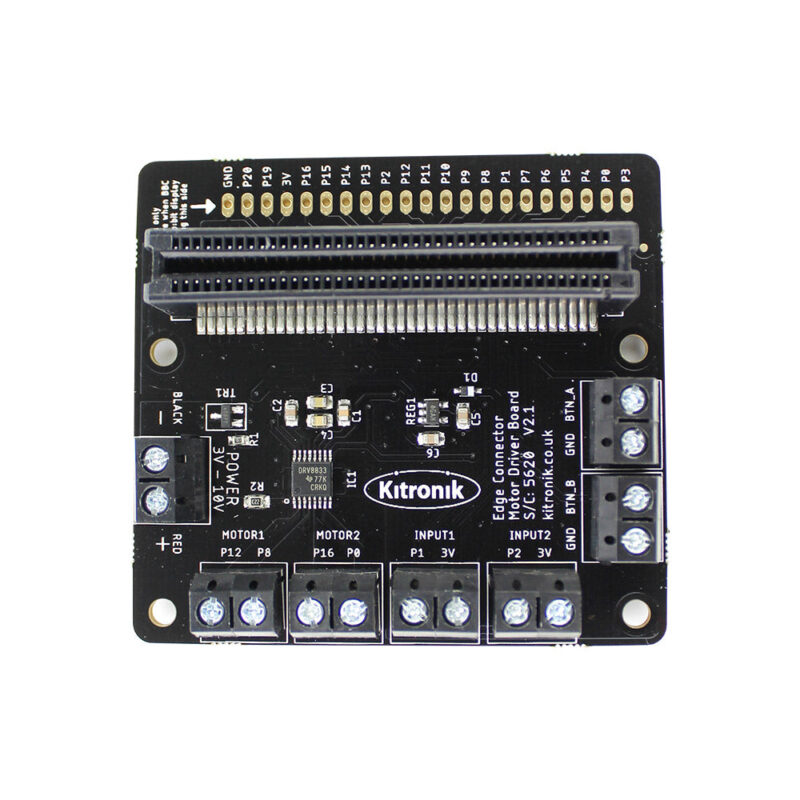

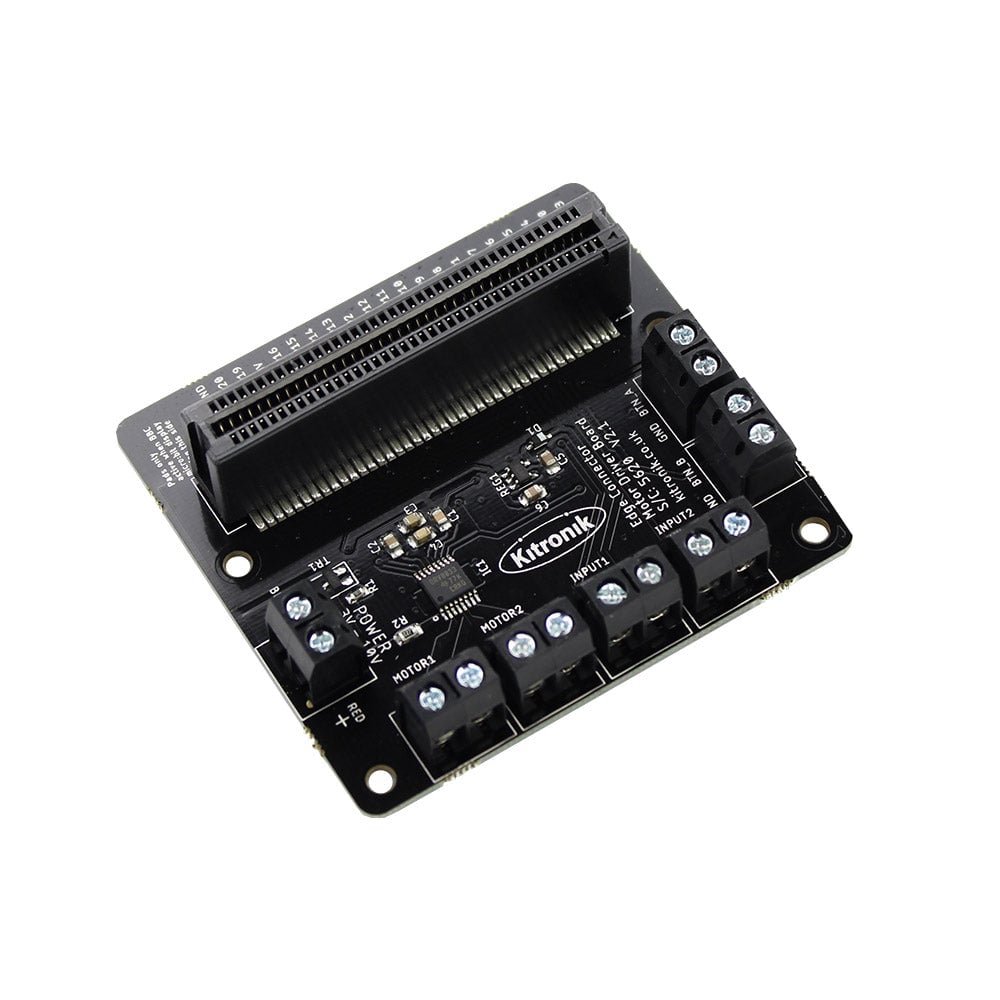

Motor Driver Board V2 for the BBC micro:bit

Stock code: 5620
filler

Pricing:Ex VATInc VAT
1+ £9.65
(excl. VAT)
£11.58
(inc. VAT)
10+ £7.95 £9.54
50+ £7.55 £9.06
Stock:
Discontinued - This page is for reference for existing customers of this product. It is not possible to buy this item.

Buy locally from a partner

Bundled options

Motor driver board plus BBC micro:bit

Kitronik motor driver board for micro:bit 1+ micro:bit V2 board only angled

Total: £22.65ex VAT

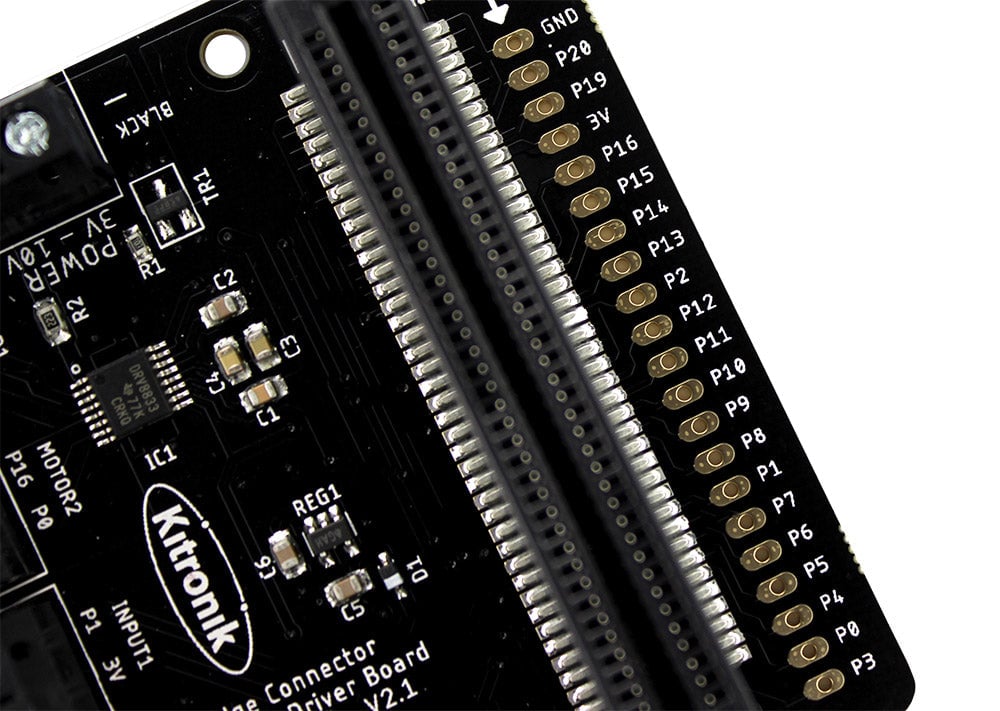

Description

AttributeValue
Operating Voltage (Vcc) 3V to 10V.
Number of motor channels 2 (2 motors with forward + reverse control, controlled by P0, P8, P12 & P16).
Digital only inputs 2 (button A / B)
Digital or analog input / output pins (P1 & P2) 2 (P1 & P2)
Typical motor output Voltage (Vm) @ 1.5A output per channel Vm = Vcc – 0.3V.
Max Current per motor channel 1.5A.
Digital output drive current 5mA
