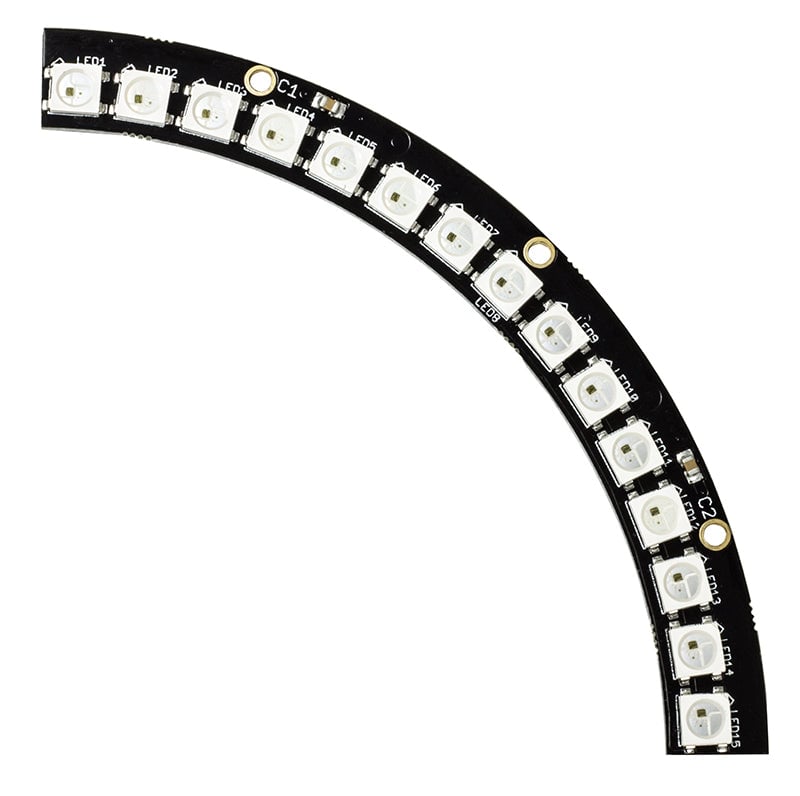

35133_large zip arc large front

More Views

ZIP Arc - 15 ZIP LEDs

5.95
Add light to your latest project with the Kitronik Large ZIP Arc. Each Arc has 15 individually addressable RGB LEDs which can be coded with the MakeCode Editor.

Availability: In Stock.

Code1+ 10+
35133£5.95
(£7.14 incl VAT)
£4.85
(£5.82 incl VAT)
OR

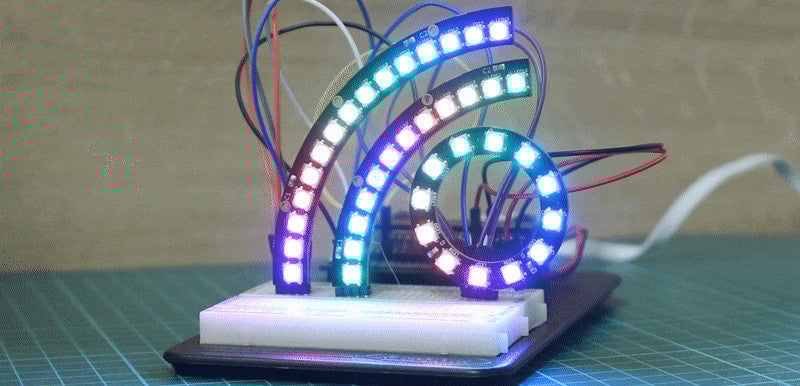

Each of our new Large ZIP Arcs has 15 individually addressable RGB LEDs. Each LED can be controlled independently and all LEDs are connected using the same three wire bus. You can connect four Large ZIP Arcs together to form a circle that would then contain 60 individually addressable RGB LEDs.

Each LED can produce a full spectrum of colours independent to all of the other LEDs on the bus. Each ZIP LED has a Red, Green and Blue element within the LED, and each of these can achieve 256 levels of brightness. This results in 16,777,216 possible output colours. Multiple ZIP LEDs can be connected to produce longer strings/strips.

The LEDs used are based on the WS2812B part which is compatible with any WS2812B driver code. They can also be coded in the MakeCode Block/Javascript editor.

Features:

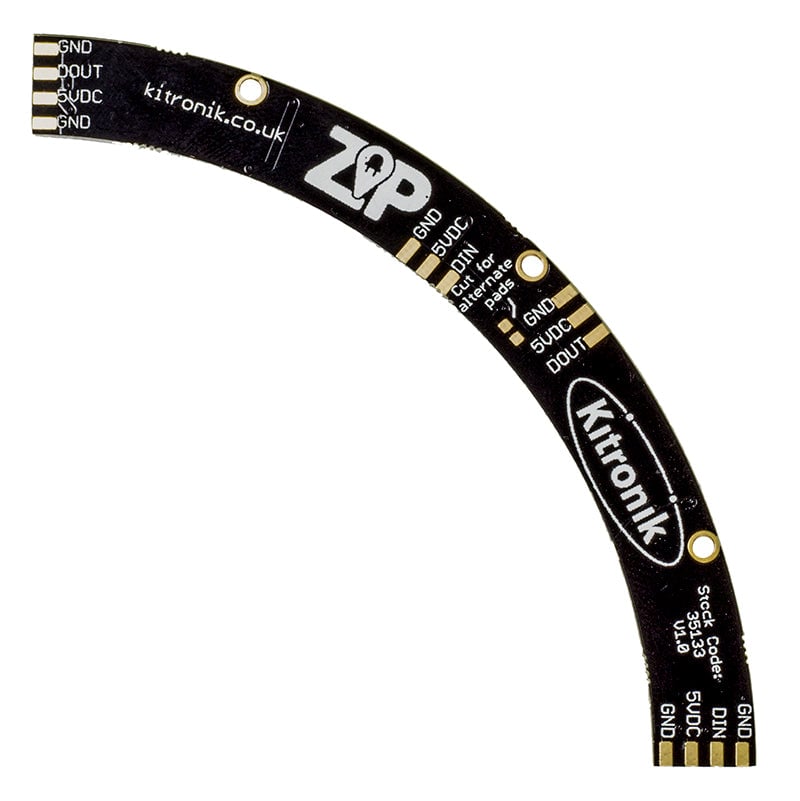

  • Simple 3 wire connection for all LEDs.
  • Compatible with any WS2812B driver code.
  • They can be coded with the Microsoft PXT Editor for the BBC microbit.
  • Integrated reset circuit.
  • You can connect four Large ZIP Arcs together to form a circle.

Contents:

  • 1 x Kitronik Large ZIP Arc.

Dimensions:

  • Length: 102.8mm.
  • Width: 10.2mm.
  • Height: 3mm.
  • PCB Height: 1.5mm.
  • Inner Radius: 62.5mm.
  • Outer Radius: 72.7mm.

Resources:


Write Your Own Review

You're reviewing: ZIP Arc - 15 ZIP LEDs

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Rating

Questions:

There are no product questions yet. Click ask a question to be the first.

Ask Your Question

* Required Fields

Same Day Dispatch

  • Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.

UK Deliveries

  • If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost 3.95 (4.74 including VAT) if you spend less than 40 (48 including VAT).
  • If you spend between 40 and 200 (48 - 240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, 12 (14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and 15 (18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate click here.
  • If you spend over 200 (240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.

Rest of the world

  • These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
  • Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.

Collection

  • If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.

Further Information

  • For information about all of the delivery options we offer click here.

Physical characteristics:

  • 6.86mm pitch between LEDs.
  • Wiring pads 2.54mm pitch.

Electrical characteristics:

  • Voltage Range (V): 3.5V - 5V
  • Current Max at Nominal Voltage (mA): 50mA per LED with Red, Green and Blue at full brightness.
  • LED wavelength 630nm/530nm/475nm.
