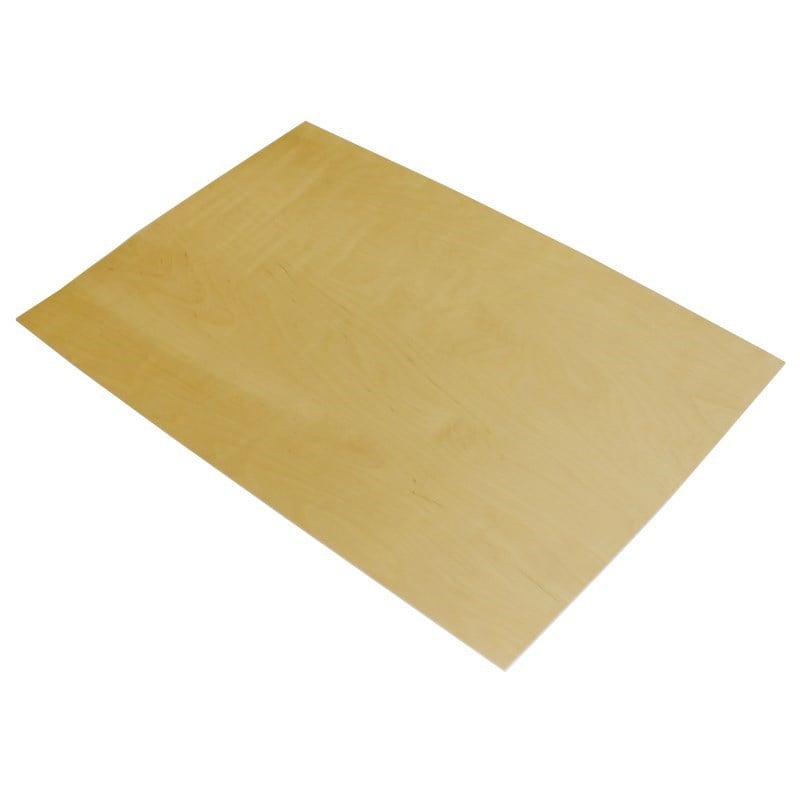

0.8mm BR Grade Birch Laser Plywood, 600mm x 400mm sheet

6.95
High quality 0.8mm Birch Laser Plywood. This plywood has a smoother surface than typical plywood, and can be flexed to create curved designs. 600mm x 400mm.

Availability: In Stock.

Code1+ 10+
3213£6.95
(£8.34 incl VAT)
£6.50
(£7.80 incl VAT)
OR

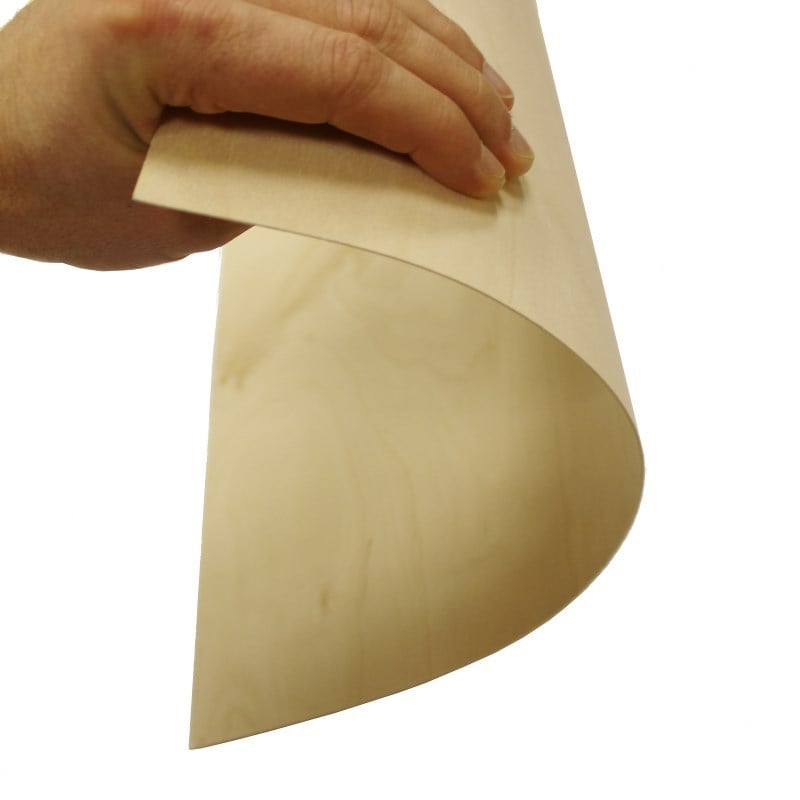

This is a high quality 0.8mm Flexible Birch Plywood sheet produced in Finland which is suitable for a wide range of applications and is suitable for laser cutting. It is bendy and can be flexed to create curved designs.

This is BR 'veneer' grade Birch Plywood. This is similar to B grade material, with knots that would typically not exceed 7mm to 8mm in diameter. It shows the natural look of the wood and will show natural colour variations. These thinner plywoods are used in specialist applications and tend to have a slightly higher quality feel. The surface of the material is sanded to a smoother finish than that that of most plywoods.

This plywood uses an EN314-2 Class 1 glue which is suitable for interior (dry) conditions. Interior glue is generally considered the preferred option for materials that are to be laser cut. We use interior glues because exterior glues can cause a more obvious 'burnt' look on and around the area that is cut.

This material is PEFC certified.

Features:

  • High quality material with a smoother surface than typical plywood.
  • PEFC Certified (Programme for the Endorsement of Forest Certification).
  • Interior grade glue.
  • 3 ply plywood.

Contents:

  • 1 x 0.8mm BR Grade Birch Laser Plywood, 600mm x 400mm Sheet.

Dimensions:

  • Length: 600mm.
  • Width: 400mm.
  • Height: 0.8mm.

Video:



Tolerances:

The manufacturing tolerance for the thickness of plywood sheets are the stated thickness +/-10%. This means a 0.8mm plywood sheet could be between 0.72mm and 0.88mm in thickness.

Resources:

Caution:

  • As wood is a natural product there is often a bow or crook to plywood, and in some cases a twist. We have measured curvature as much as a 30mm rise between the flat center of the plywood and the corner, therefore if using on a laser cutter these sheets should be strapped/taped to the laser bed before cutting.

Note:

  • On all Plywood, MDF and Perspex Sheet Orders (excluding A4 size) there is a flat delivery charge of £6.50 per order.
flexible_birch_plywood_thumb
Video: High Quality Flexible Birch Ply
High Quality Flexible Birch Laserable Plywood has a smoother surface than typical plywood, and can be flexed to create curved designs. 600mm x 400mm.
BR grade birch
A Guide to Plywood Grading
There's a vast range of different plywoods to meet different requirements. This simple guide to help you understand the many options in a simple way.

Questions:

Posted by Heather, Monday, 13 March 2017 on product 0.8mm BR Grade Birch Laser Plywood, 600mm x 400mm sheet
  • 0
    vote
    A:

    Hi Heather, I have checked the sheet for flexibility, as you can see from the video on the product page it flexes across the width very well. It can also flex length ways, however you can only flex it this way around 20-30% of the amount you can width ways. I hope this helps.

    Posted by Michael Lockhart on Monday, 13 March 2017
Posted by Barry, Thursday, 30 June 2016 on product 0.8mm BR Grade Birch Laser Plywood, 600mm x 400mm sheet
  • 0
    vote
    A:

    Barry,

    I’ve just had a look at the 0.8mm BR grade birch and there is quite a bit of colour variation within that product let alone comparing it to another product, some sheets match exactly probably as they were cut from the same log, but others are different shades. I don’t think you can expect them to match.

    At the moment the biggest sheet size is 600 x 400mm and we don’t currently have any plans to do a bigger sheet size. We could get material cut to order, but there would be a big minimum order quantity in the order of hundreds of sheets which means for most people it isn’t really viable.

    Best regards

    Michael

    Posted by Rob Haywood on Thursday, 30 June 2016
Posted by Santiago Reyes Villaveces, Tuesday, 24 May 2016 on product 0.8mm BR Grade Birch Laser Plywood, 600mm x 400mm sheet
  • 0
    vote
    A:

    The answer to your questions are as follows: 1, unfortunately this product comes in pre-cut to us from our supplier, and as such this is currently the largest sheet size we can obtain. 2, the plywood doesn’t have a coating to protect it from the elements, as such without any protection it wouldn’t with stand being outdoors, even with protection it is difficult to determine how the products properties would change. 3, we wouldn’t be able to offer sponsorship for this exhibition, we have a limited budget for this and we have already used this for this current year. I apologise that we are unable to help with your project.

    Posted by Michael Lockhart on Tuesday, 24 May 2016
Posted by Inga, Tuesday, 26 May 2015 on product 0.8mm BR Grade Birch Laser Plywood, 600mm x 400mm sheet
  • 0
    vote
    A:

    Hello Inga, I will look into obtaining the datasheet for the thin laser plywood that we stock, and will then forward this on to you.

    Posted by Michael Lockhart on Tuesday, 26 May 2015
