3207_large_3mm_laser_birch_plywood_A4

More Views

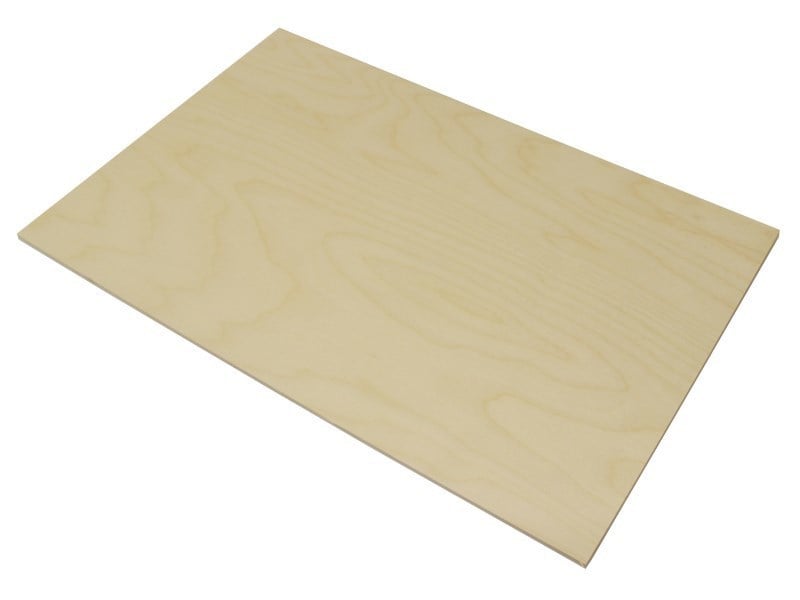

3mm Birch Laser Plywood, 297mm x 210mm (A4)

0.75
3mm Birch Laser Plywood Sheet. B grade on topside, BB grade on underside. Convienient A4 (297mm x 210mm) sheet size. Ideal for a wide number of applications.

Availability: In Stock.

Code1+ 100+
3207£0.75
(£0.90 incl VAT)
£0.40
(£0.48 incl VAT)
OR

High quality 297mm x 210mm (A4) Birch Plywood sheets. Suitable for a wide range of applications, including use on a laser cutter.

This is B/BB grade Birch Plywood with B grade on the topside and BB grade on the underside. Please note: As wood is a natural product, there is often a crook or bow to the sheet. The natural twist might be in excess of 25mm (see below - Tolerances and Caution).

The B grade topside shows the natural look of the wood. There will be changes in colour that show the grain pattern. Sound, smooth knots are allowed and these will typically be under 15mm to 35mm in diameter. The surface should normally be free from open knots and plugs. This material should be suitable for paint / stain or a lacquered finish.

BB grade is similar to B grade but allows for larger knots and repairs to the face. Sound, smooth knots are allowed and these will typically be under 50mm in diameter. Open knots can be repaired with wooden plugs. The material should be suitable for applications where the visual look is not critical..

Our Birch Plywood uses an EN314-2 Class 1 glue which is suitable for interior (dry) conditions. Interior glue is generally considered the preferred option for materials that are to be laser cut. This is because the exterior glues can cause a more obvious 'burnt' look on and around the area that is cut.

Knots or resin within the material can cause scorch marks when used on a laser cutter. These can usually be removed with fine grade wet and dry sandpaper.

Although some sheets may have 2 faultless faces, some may have imperfections on both sides and therefore this product is most suitable for applications where a solid surface is needed but the visual aspects are not critical.

This material is FSC certified.

Features:

  • B grade finish on topside.
  • BB grade finish on underside.
  • FSC certified(Forestry Standards Commission).
  • Interior grade glue.

Contents:

  • 1 x 3mm Birch Laser Plywood, 297mm x 210mm (A4) Sheet.

Dimensions:

  • Length: 297mm.
  • Width: 210mm.
  • Height: 3mm.

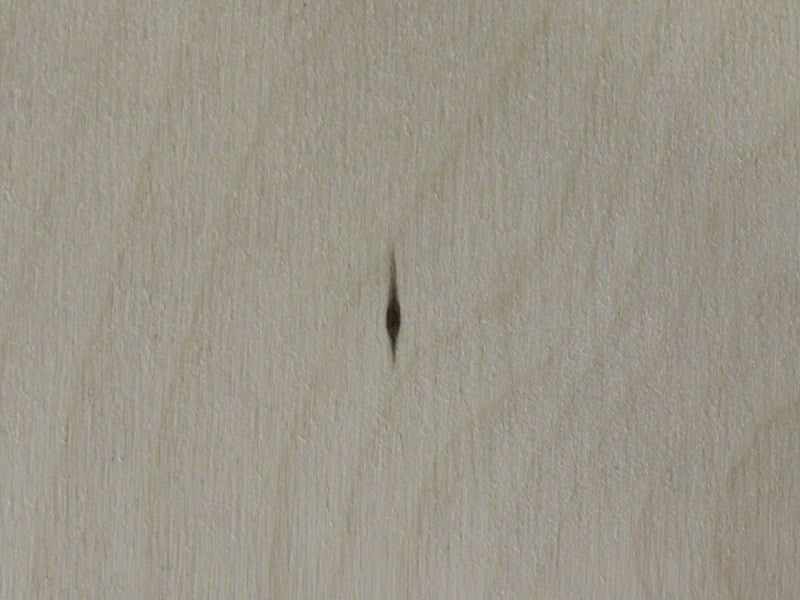

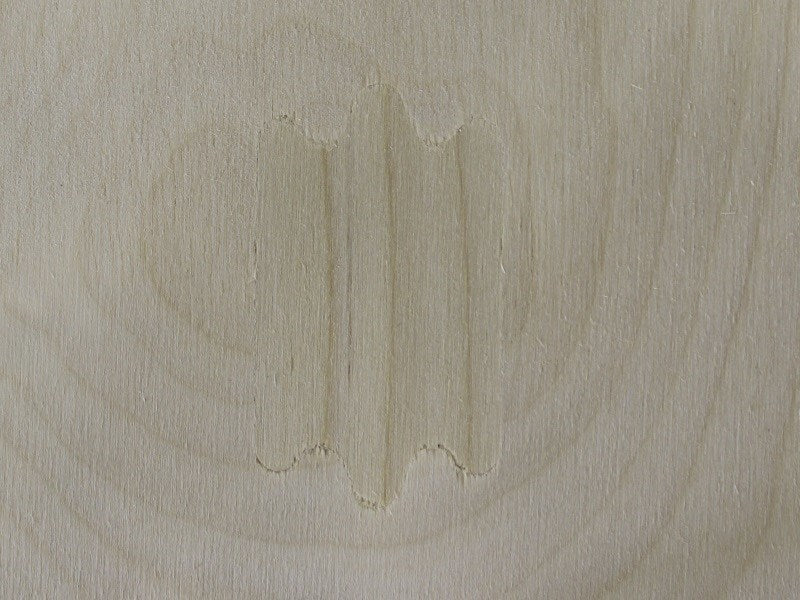

Example imperfections:



Tolerances:

The manufacturing tolerance for the thickness of plywood sheets are the stated thickness +0.3mm/-0.4mm. This means a 3mm plywood sheet could be between 2.6mm and 3.3mm in thickness.

Resources:

Caution:

  • As wood is a natural product there is often a bow or crook to plywood, and in some cases a twist. We have measured in excess of 25mm rise between the flat centre of the plywood and the corner. These twists are completely normal and add to the natural character of the plywood. If you are using this product on a laser cutter; these sheets should be strapped/taped to the laser bed before cutting.
BR grade birch
A Guide to Plywood Grading
There's a vast range of different plywoods to meet different requirements. This simple guide to help you understand the many options in a simple way.

Questions:

Posted by tom, Tuesday, 3 February 2015 on product 3mm Birch Laser Plywood, 297mm x 210mm (A4)

Question:

Hi, what laser cutting settings would you advise for this thickness of birch ply?

Answers:

  • Posted by Michael Lockhart on Tuesday, 3 February 2015

    The best settings for you to use will depend on the make and model of your laser cutter. As a point of reference though for cutting this material we use a 40W tube and run the laser at 65% power and a speed of between 8 to 10.
