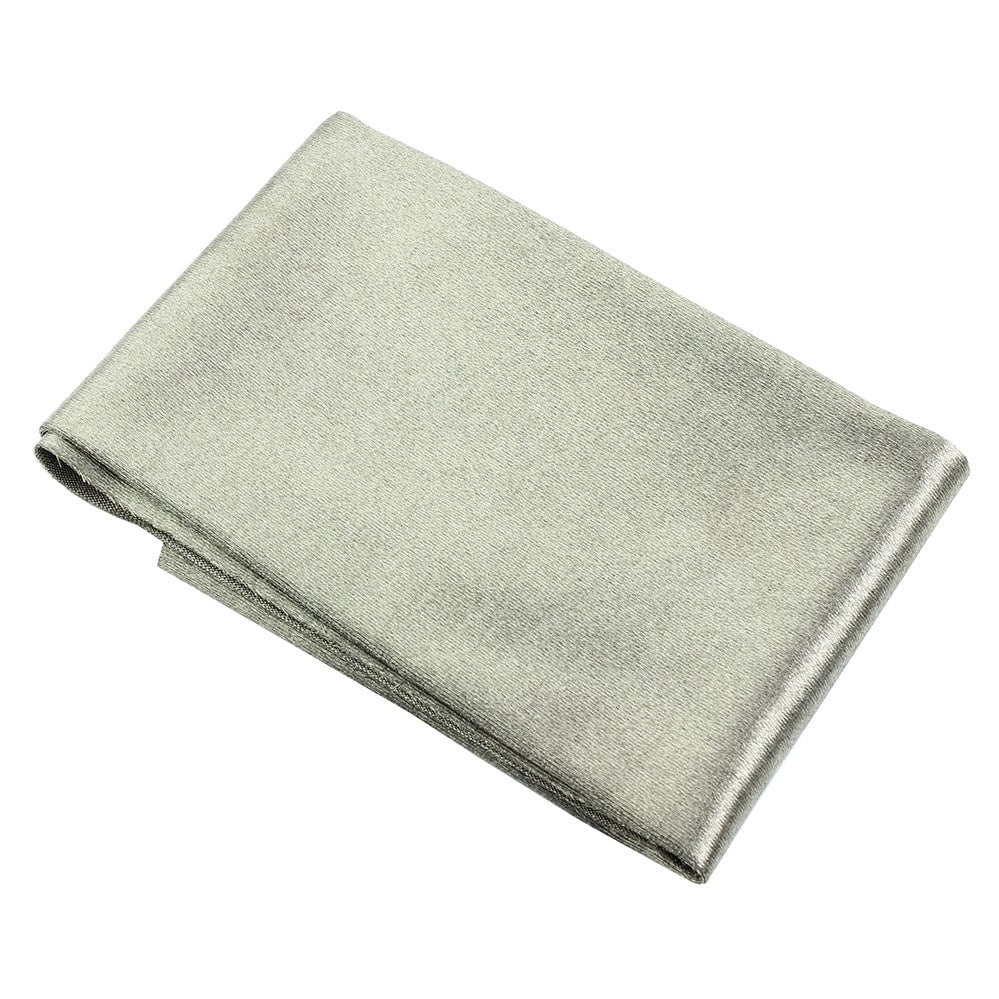

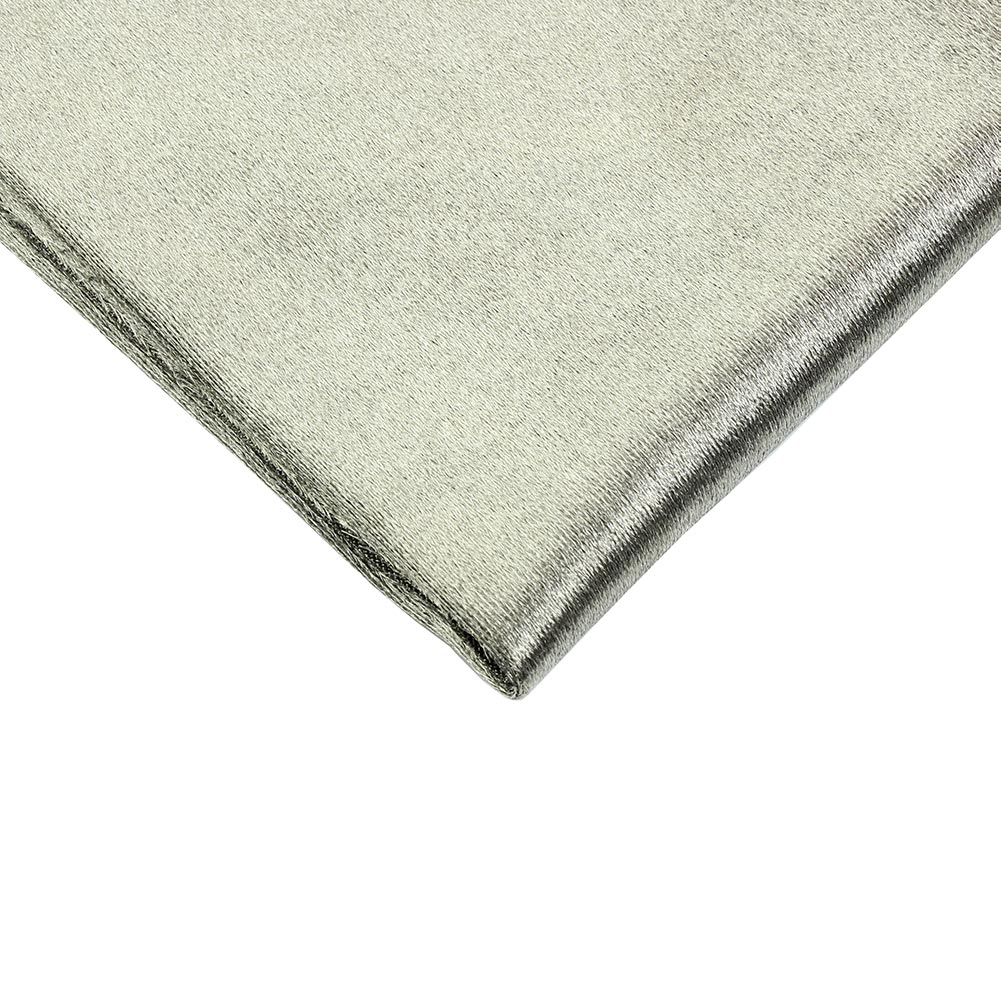

Conductive Fabric, Stretch

20
This is a Stretchy Conductive-knit Fabric for use in E-Textiles. It is silver plated nylon that is stretchy in one direction and is highly conductive.

Availability: In Stock.

Code1+
2717 £20.00
(£24.00 incl VAT)
OR

This is a conductive knit fabric for use in e-textiles. It is silver-plated nylon that is stretchy in one direction. It is highly conductive with a surface resistivity of < 5 ohm/sq. This is a great add-on to any LilyPad project. Medtex 180 Ag Nylon single directional stretch.

If you aren't sure what to do with conductive fabrics, check out some of these Instructables.

Features:

  • It's conductive!
  • Easily sew electronic features into your next project.
  • Great for use with the LilyPad or our Electro-Fashion range.

Dimensions: 12 x 13" (304.8 x 330.2 mm)

Documents:Datasheet


Write Your Own Review

You're reviewing: Conductive Fabric, Stretch

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Rating

Questions:

Posted by wassim, Wednesday, 6 September 2017 on product Conductive Fabric, Stretch
  • 0
    vote
    A: Hello Wassim, The resistance of the fabric doesn’t alter much, we measured around a 10% difference from when the material was stretched to when it was under no strain. The surface resistance on average is <5Ohms/sq. The material should be able to detect low current passing through as normally it would be used is low current circuits. Unfortunately we don’t have a graph with the required information and the only datasheet we have been provided is this one, https://www.kitronik.co.uk/pdf/2717-Conductive-Fabric-Stretch.pdf.
    Posted by Michael Lockhart on Monday, 12 June 2017
Posted by fathima, Wednesday, 31 August 2016 on product Conductive Fabric, Stretch
  • 0
    vote
    A:

    Hi Fathima, Unfortunately we are unable to get this material in this length, this is the only size our supplier provides. You would however be able to combine multiple pieces together to create a larger piece.

    Posted by Michael Lockhart on Wednesday, 31 August 2016
Posted by Nickie, Tuesday, 23 August 2016 on product Conductive Fabric, Stretch
  • 0
    vote
    A:

    Hi Nickie, The resistance of the fabric doesn’t alter much, we measured around a 10% difference from when the material was stretched to when it was under no strain. The surface resistance on average is <5Ohms/sq.

    Posted by Michael Lockhart on
Posted by Barry Martindale, Wednesday, 4 May 2016 on product Conductive Fabric, Stretch
  • 0
    vote
    A:

    We currently are unable to obtain the conductive fabric in a larger size. However you would be able to connect two pieces together, as long as they were tightly held together the fabric would conduct. You could use normal thread, conductive thread or even conductive Velcro to secure the pieces together.

    Posted by Michael Lockhart on Wednesday, 4 May 2016
Posted by ED, Thursday, 24 September 2015 on product Conductive Fabric, Stretch
  • 0
    vote
    A:

    The conductive fabric can be used to connect components together, however you would need to connect the components to the conductive fabric using the conductive thread.

    Posted by Michael Lockhart on Thursday, 24 September 2015
Posted by Darren Edwards, Friday, 5 September 2014 on product Conductive Fabric, Stretch
  • 0
    vote
    A: Hi, unfortunately at the moment this is the only size we have. We are currently looking into expanding this range with larger pieces though.
    Posted by Aaron Sturman on Friday, 5 September 2014
