2161_large micro usb lamp kit

More Views

Micro USB Lamp Kit - 1W LED V2.0

3.85
Easy Build
Exclusive to Kitronik
Teaching Notes
Key Stage 3
This kit allows you to build a mains powered lamp that takes power from a standard Micro USB phone charger. It uses a very bright 1W Power LED.

Availability: In Stock.

Code1+ 5+ 50+
2161£3.85
(£4.62 incl VAT)
£2.89
(£3.468 incl VAT)
£2.65
(£3.18 incl VAT)
OR

Our newest version of our very popular Micro USB Lamp Kit allows you to build an economic mains powered lamp that takes power from a standard Micro USB phone charger (available separately). The previous version was built using a breakout board, V2.0 features a board designed specifically for purpose which means that the kit is now much neater and easier to build.

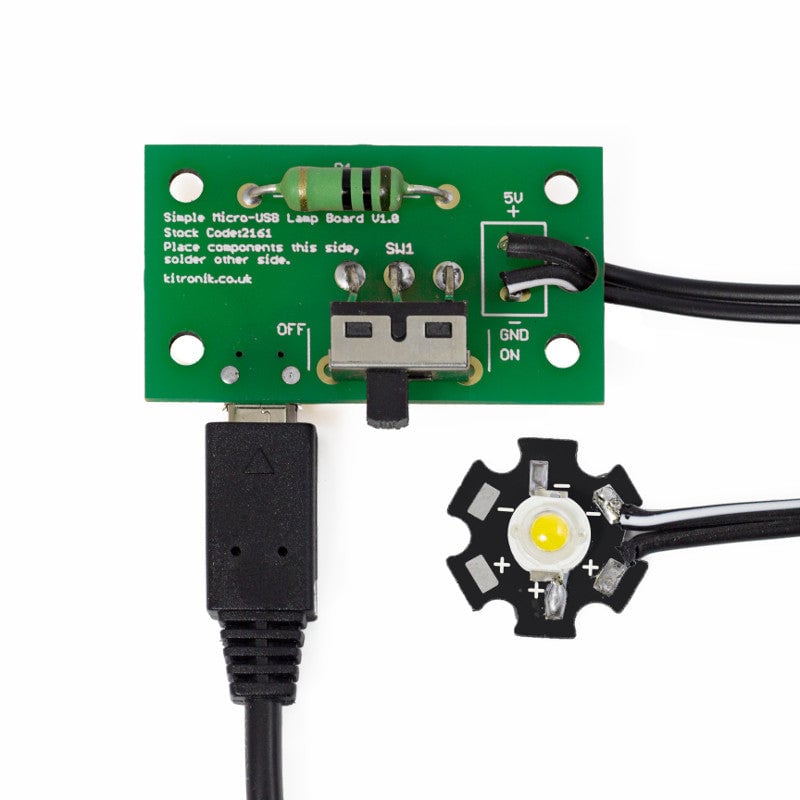

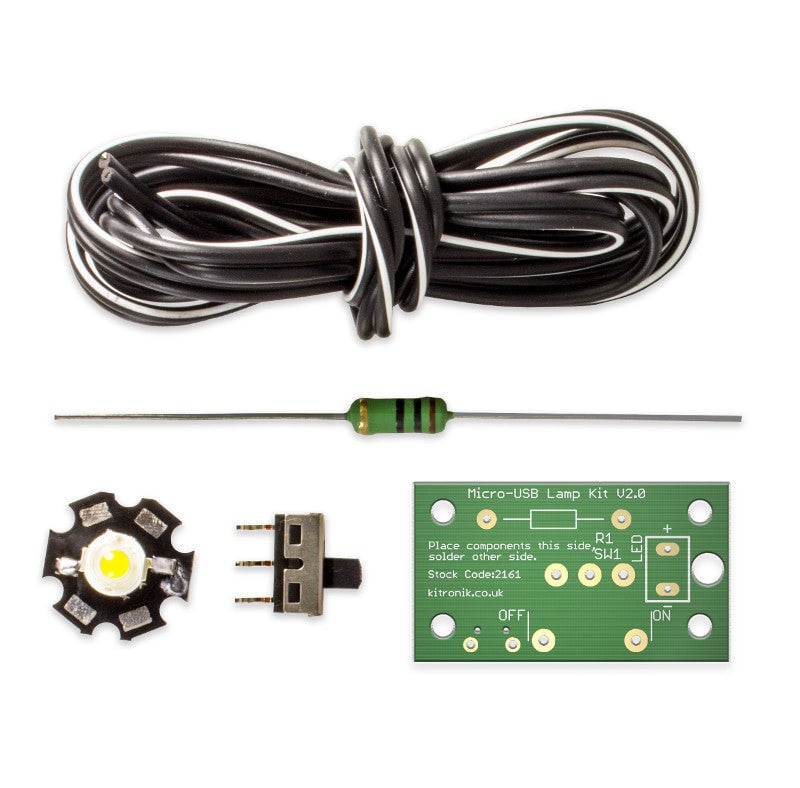

The kit comprises a very bright 1W Power LED which connects (with the cable provided) to a PCB that has a power switch, Micro USB connector and power resistor.

All that is required to assemble the kit is to connect the LED to the desired length of cable and solder the other end of the cable, the resistor, and the switch to the board.

Features:

  • Easy to build lamp kit.
  • Ultra bright 1W Power LED.

Contents:

Dimensions:

  • Max Built Height: 12mm.
  • PCB Length: 44mm.
  • PCB Width: 25mm.
  • PCB Height: 1.5mm.

Requires:

Resources:

Free samples:

Teachers can order a sample of this kit (one per school) here. You will need to select the kit from a list of all the sample kits; the stock code for this kit is 2161.
Note: this service is only offered to schools for evaluation purposes only.

Buy British:

 This kit is designed and manufactured in the UK by Kitronik.


Write Your Own Review

You're reviewing: Micro USB Lamp Kit - 1W LED V2.0

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Rating

Questions:

Posted by Jo Hicks, Thursday, 1 March 2018 on product Micro USB Lamp Kit - 1W LED V2.0
  • 0
    vote
    A: Hi Jo, If you are referring to the power cable that is shown in the photo then it is this product, https://www.kitronik.co.uk/2208-5v-1a-micro-usb-uk-mains-wall-power-supply.html. If you mean the cable that connects the power LED star to the board then this is the cable, https://www.kitronik.co.uk/2448-figure-8-speaker-cable-2x-7x018mm-100m-reel.html.
    Posted by Michael Lockhart on Friday, 5 January 2018

Ask Your Question

* Required Fields

Same Day Dispatch

  • Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.

UK Deliveries

  • If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost 3.95 (4.74 including VAT) if you spend less than 40 (48 including VAT).
  • If you spend between 40 and 200 (48 - 240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, 12 (14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and 15 (18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate click here.
  • If you spend over 200 (240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.

Rest of the world

  • These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
  • Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.

Collection

  • If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.

Further Information

  • For information about all of the delivery options we offer click here.

Physical characteristics:

  • PCB Length: 44mm.
  • PCB Width: 25mm.
  • PCB Component Count: 3.

Electrical characteristics:

  • Voltage Nominal: 5V.
  • Voltage Range: 3.5V to 6V.
  • Current Max at Nominal Voltage: 0.3A.
