Game Project Kit

5.42
Exclusive to Kitronik
Teaching Notes
Key Stage 3
2 games in 1 kit: Memory Game and Reactions Game. The kit is comprised of four buttons and four LEDs, all controlled by a pre-programmed PIC microcontroller.

Availability: In Stock.

Code1+ 5+ 50+
2103£5.42
(£6.504 incl VAT)
£3.85
(£4.62 incl VAT)
£3.55
(£4.26 incl VAT)
OR

This kit has 2 games in 1: A memory game and a reaction game. Both games are available from the pre-programmed PIC controller when the kit has been built.

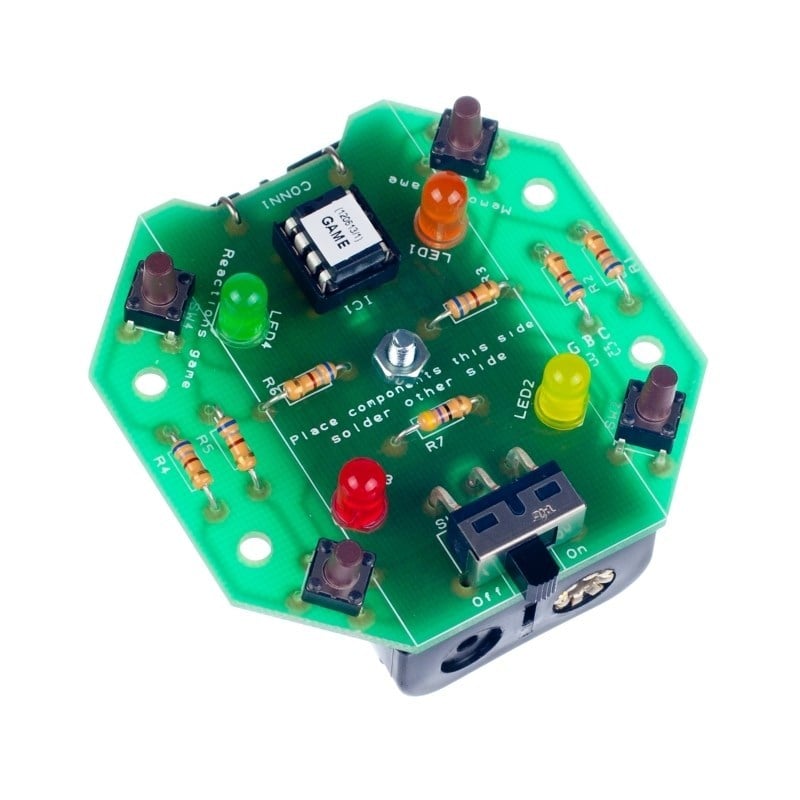

The kit has four buttons and LEDs to make up two games. When made, the kit can act as both a memory game and a reactions game. A PIC micro-controller, pre-programmed with special software controls each of the games.

The on / off switch and battery pack mount directly onto the board allowing it to be used as built or alternatively it can be housed into an enclosure of your own design.

Game 1: Memory Game

This is our take on the classic 'Simon Says' game. You have to match the pattern shown by the 4 LEDs in the order shown by the kit before the timer runs out!

Game 2: Reaction Game

This game tests how fast your reactions are! The kit lights up an LED where you have to press the corresponding button on the same corner as the LED. The game times out if you press the wrong corresponding button or don't press the button in time.

Features:

  • 2 Games in 1 kit (memory game and reactions game).
  • Compact PCB design.

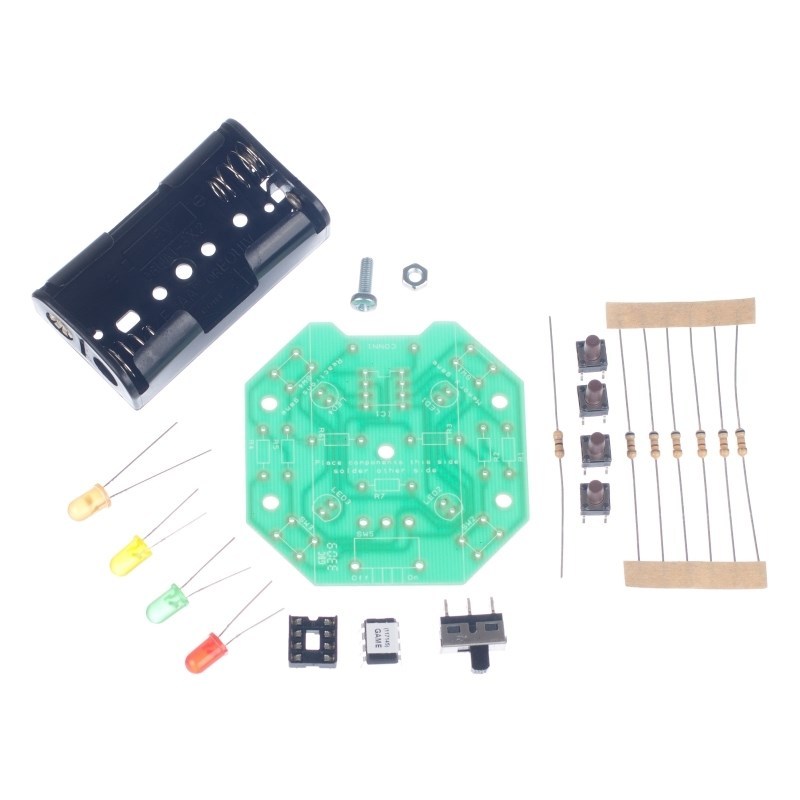

Contents:

Dimensions:

  • Length: 58.5mm.
  • Width: 58.5mm.

Requires:

Resources:

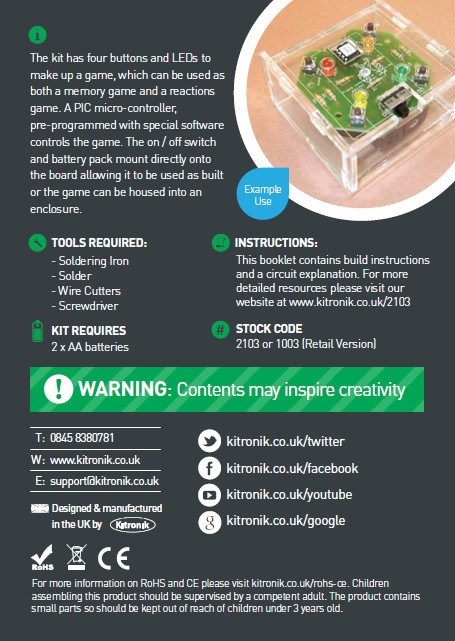

This kit is supplied in a grip seal bag. It is also available in retail packaging. For more details on this version click here.

Free samples:

Teachers can order a sample of this kit (one per school) here. You will need to select the kit from a list of all the sample kits; the stock code for this kit is 2103.
Note: this service is only offered to schools for evaluation purposes only.

Buy British:

 This kit is designed and manufactured in the UK by Kitronik.

Physical characteristics:

  • PCB Length: 58.5mm.
  • PCB Width: 58.5mm.
  • PCB Component Count: 18.

Electrical characteristics:

  • Voltage Nominal: 3V.
  • Voltage Range: 2V - 5V.
  • Standby Current: 9.5mA.
  • Current Max at Nominal Voltage: 12mA.
EPSON DSC picture
Gallery Plastic Game Kit – Hardenhuish School
Plastic Game Kit designed by students at Hardenhuish School.
Game Kit demo
Video Electronic Game Kit Demo
Electronic Game Kit demo video.
Ask Kitronik Electronic Game Kit
Video Electronic Game Kit
A video about our Electronic Game Kit taken from our Ask Kitronik Live event 2012.

Questions:

Posted by George Divanis, Tuesday, 15 March 2016 on product Game Project Kit

Question:

What would the code be for the game in picaxe software? How complicated and time consuming would this be to do?

Answers:

  • Posted by Michael Lockhart on Tuesday, 15 March 2016

    The game kit you are looking at comes with a pre-programmed PICAXE chip, which can’t be edited. Depending on how well you know PICAXE programming would depend on how difficult it would be to program your own game.

Posted by mark, Thursday, 1 October 2015 on product Game Project Kit

Question:

can you use this is in a gcse electronic controlled assessment

Answers:

  • Posted by Michael Lockhart on Thursday, 1 October 2015

    This kit is suitable for Key Stage 3, the chip supplied with this kit is pre-programmed so if you need to create a program yourself you the assessment this kit isn’t suitable.

Posted by Ciaran, Wednesday, 1 October 2014 on product Game Project Kit

Question:

Have you any kits which allow are programmable but have the components soldered to the circuit?

Answers:

  • Posted by Aaron Sturman on Wednesday, 1 October 2014
    Our Motor Controller Board Kit has a pre-built variant, product code 2124B.
Posted by Stuart, Wednesday, 13 August 2014 on product Game Project Kit

Question:

Hi I am planning to order some Memory Games kits (2103) for IET Scout activity. Can you provide the enclosures shown on your website? https://www.kitronik.co.uk/2103-game-project-kit.html Regards, Stuart

Answers:

  • Posted by Aaron Sturman on Wednesday, 13 August 2014
    Hi Stuart, The enclosure in the image was made by students at a school a few months ago and I don't have the designs unfortunately.
Posted by Martyn Groves, Friday, 11 April 2014 on product Game Project Kit

Question:

Hi, Could you possibly confirm whether there are any teaching notes with this game project concerning the programming? I am using Circuit Wizard for PIC programming but struggling to create teaching resources without imperfections in the flowchart aspect. Any help would be greatly appreciated! Best Wishes, Martyn

Answers:

  • Posted by Matt Macleod on Friday, 11 April 2014
    The chip is pre-programmed with code specifically for this application it is not a PICAXE or Genie chip, but written in assembly language code. It is therefore not possible to reprogram the chip without Microchip development tools. The code is fairly complex and not something that you would be able to recreate using a flow chart. I would have thought that you would be best looking at how flowcharts work with a simpler task and then explain that the way that the software in the game is written is done using text based instructions. The program is about 500 lines in length, so it's not something you really want to be studying.
